STC2073F - NPN Silicon Transistor

STC2073F Description

STC2073F NPN Silicon Transistor .
General purpose amplifier. High voltage application PIN Connection 4 Features. High collector breakdown voltage : VCEO.

STC2073F Features

* High collector breakdown voltage : VCEO = 160V
* Low collector saturation voltage : VCE(sat)=0.5V(MAX. )
* “Green” device and RoHS compliant device
* Available in full lead (Pb)-free device 123 SOT-89 Ordering Information Type No. Marking Package Code STC2073F

📥 Download Datasheet

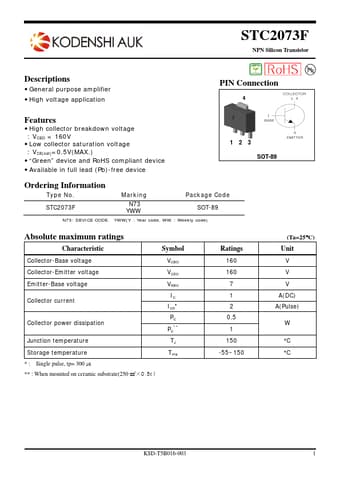

Preview of STC2073F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STC2073F
Manufacturer
AUK
File Size
395.21 KB
Datasheet
STC2073F-AUK.pdf
Description
NPN Silicon Transistor
