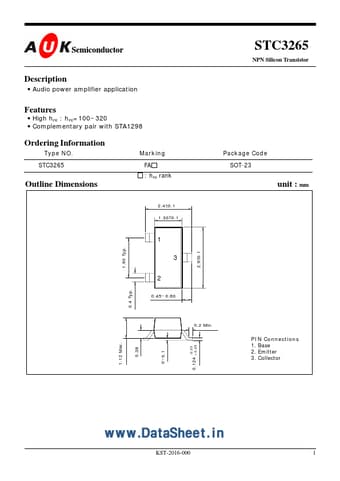

STC3265 - NPN Silicon Transistor

AUK

Datasheet Details

Audio power amplifier application

High hFE : hFE=100~320.
Complementary pair with STA1298 Ordering Information Type NO. STC3265 Marking FA : hFE rank Package Code SOT-23 Outline Dimensions 2.4±0.1 1.30±0.1 unit : mm 1 1.90 Typ. 3 2 0.4 Typ. 0.45~0.60 0.2 Min. 2.9±0.1 1.12 Max. 0~0.1 KST-2016-000 0.124 PIN Connections 1. Base 2. Emitter 3. Collector 0.38 -0.03 +0.05 1 STC3265 Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitter-Base voltage Collector c.
