STC3232E - High ESD-Protected Low Power 3.3V to 5.5V True RS-232 Transceivers

Datasheet Details

Part number	STC3232E
Manufacturer	ETC
File Size	139.73 KB
Description	High ESD-Protected Low Power 3.3V to 5.5V True RS-232 Transceivers
Datasheet	STC3232E_ETC.pdf

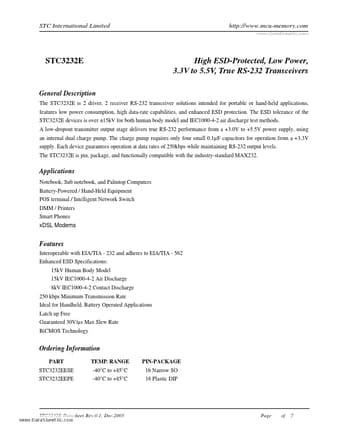

The STC3232E is 2 driver, 2 receiver RS-232 transceiver solutions intended for portable or hand-held applications,

low power consumption, high data-rate capabilities, and enhanced ESD protection. The ESD tolerance of the STC3232E devices is over ± 15kV for both human body model and IEC1000-4-2 air discharge test methods. A low-dropout transmitter output stage delivers true RS-232 performance from a +3.0V to +5.5V power supply, using an internal dual charge pump. The charge pump requires only four small 0.1µ F capacitors for operation from a +3.3V supply. Each device guarantees operation at data rates of 250k.
