STC3117 - Gas gauge IC

STMicroelectronics

📥 Download Datasheet

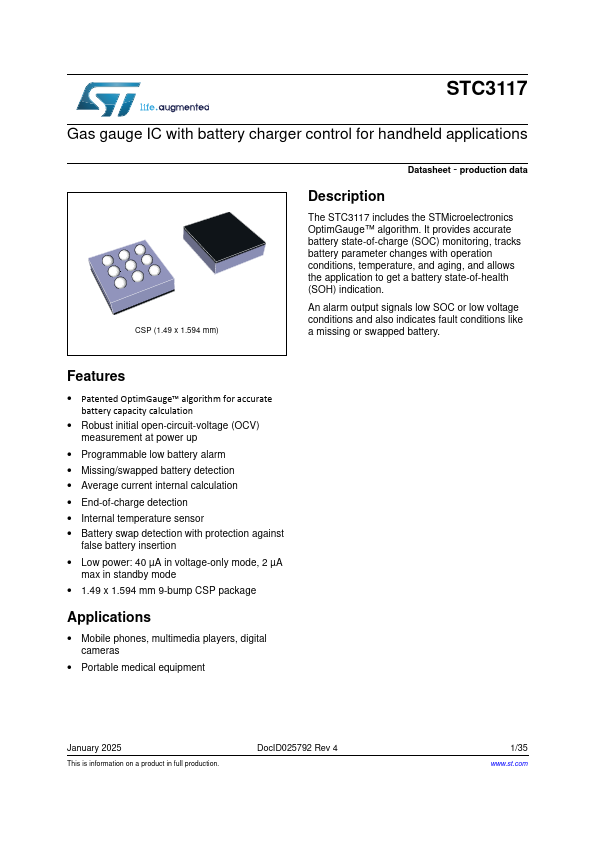

STC3117 Datasheet Preview — Preview of STC3117 PDF

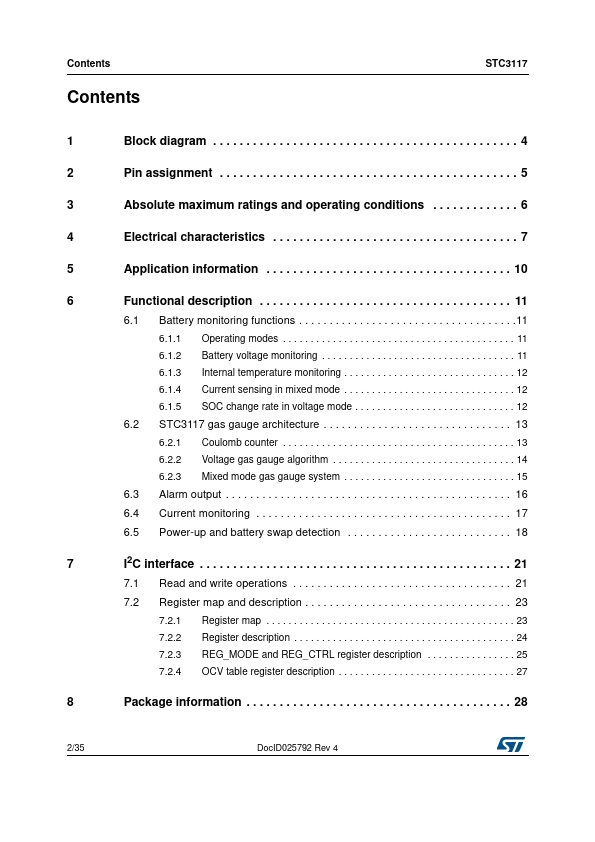

datasheet Preview Page 2

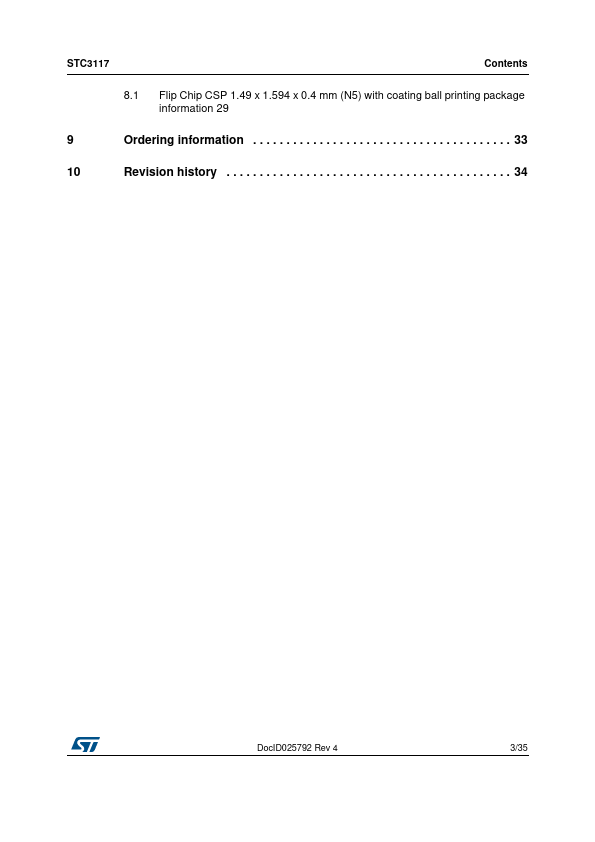

datasheet Preview Page 3

Datasheet Details

Part number	STC3117
Manufacturer	STMicroelectronics ↗
File Size	573.76 KB
Description	Gas gauge IC
Datasheet	STC3117-STMicroelectronics.pdf

STC3117 Product details

Description

The STC3117 includes the STMicroelectronics OptimGauge™ algorithm.

Features

Patented OptimGauge™ algorithm for accurate battery capacity calculation.
Robust initial open-circuit-voltage (OCV) measurement at power up.
Programmable low battery alarm.
Missing/swapped battery detection.
Average current internal calculation.
End-of-charge detection.
Internal temperature sensor.
Battery swap detection with protection against false battery insertion.
Low power: 40 µA in voltage-only mode, 2 µA ma.
