STCC2540 Datasheet - STMicroelectronics

STCC2540 USB charging controller

The STCC2540 device integrates, in one package, a USB charger controller, a wide bandwidth data switch, and a high current power switch. The device emulates several profiles compatible with the USB battery charging standard, BC1.2, Chinese telecommunications standard YD/T 1591-2009, and proprietary .

STCC2540 Features

* Compliant with USB charging specifications BC1.2, USB 2.0 and USB 3.0 standards

* Compliant with Chinese telecommunications industry standard YD/T 1591-2009

* Compatible with proprietary charging mode (Apple® 1 A / 2 A, BlackBerry®, Korean tablets)

* Wide bandwidth,

STCC2540-STMicroelectronics.pdf

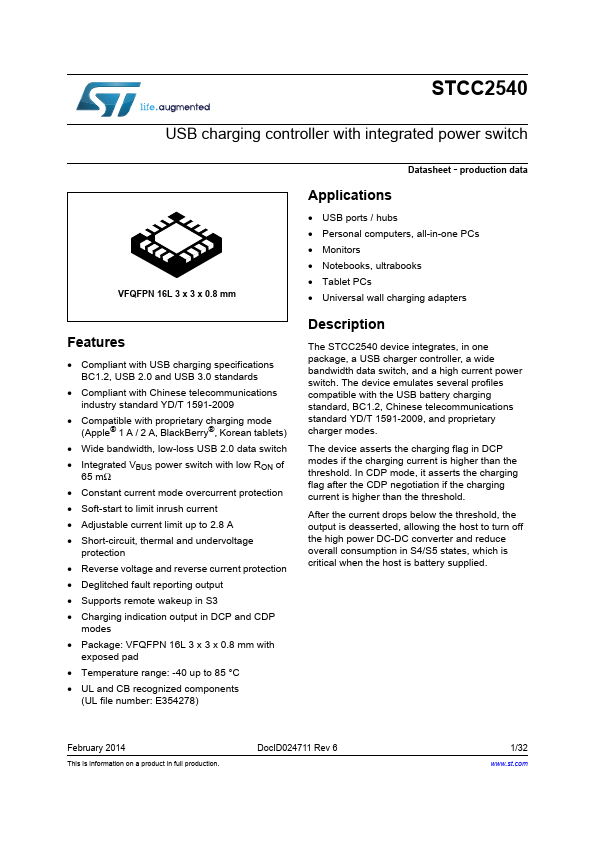

Preview of STCC2540 PDF

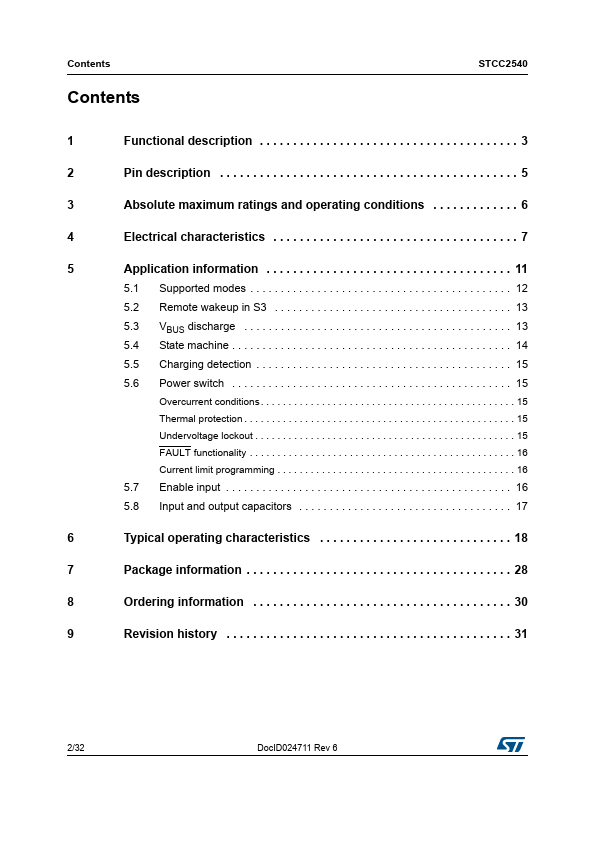

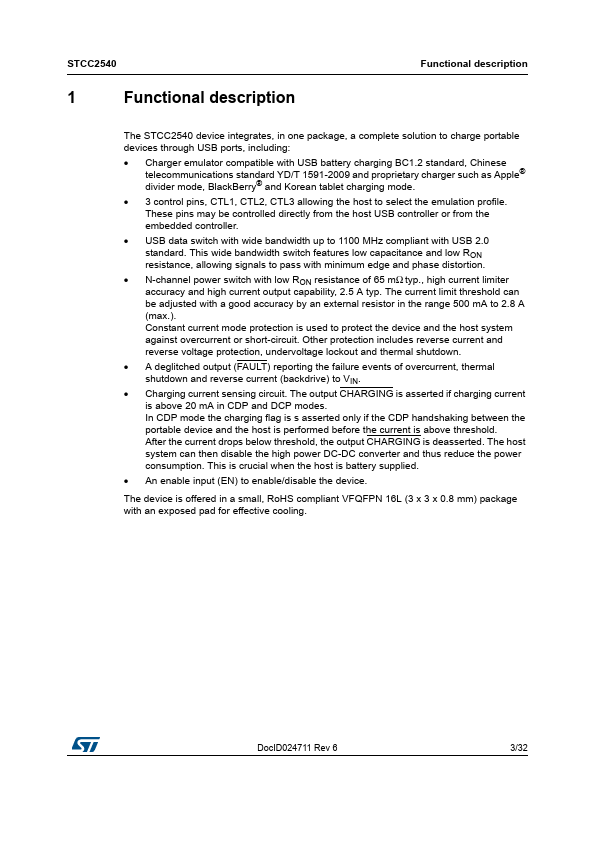

STCC2540 Datasheet Preview Page 2 STCC2540 Datasheet Preview Page 3

Datasheet Details

Part number:

STCC2540

Manufacturer:

STMicroelectronics ↗

File Size:

946.06 KB

Description:

Usb charging controller.
