STC3115 - Gas gauge

STMicroelectronics

📥 Download Datasheet

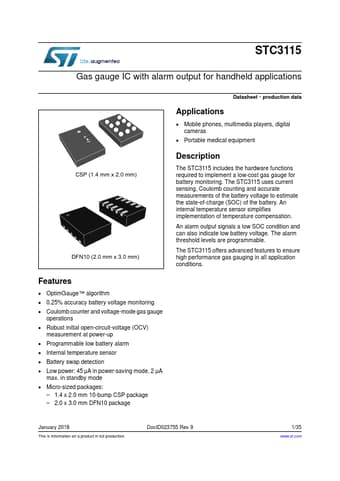

STC3115 Datasheet Preview — Preview of STC3115 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: STC3115
Manufacturer: STMicroelectronics ↗
File Size: 713.02 KB
Datasheet: STC3115-STMicroelectronics.pdf
Description: Gas gauge

STC3115 Product details

Description

The STC3115 includes the hardware functions required to implement a low-cost gas gauge for battery monitoring.

Features

OptimGauge™ algorithm.
0.25% accuracy battery voltage monitoring.
Coulomb counter and voltage-mode gas gauge operations.
Robust initial open-circuit-voltage (OCV) measurement at power-up.
Programmable low battery alarm.
Internal temperature sensor.
Battery swap detection.
Low power: 45 µA in power-saving mode, 2 µA max. in standby mode.
Micro-sized packages:.
1.4 x 2.0 mm 10-bump CSP package.
2.0.
