AEDR-8400

Reflective Surface Mount Optical Encoder

AEDR-8400 Features

* Reflective technology

* Surface mount leadless package

* Two channel quadrature digital outputs for direction sensing

* TTL compatible

* Single 2.8V supply

* -20°C to 85°C absolute operating temperature

* Encoding resolution: 254 (lines/inch)

AEDR-8400 General Description

The AEDR-8400 encoder is the smallest optical encoder employing reflective technology for motion control purposes. The encoder houses an LED light source and a photo-detecting circuitry in a single package. The AEDR-8400 encoder offers two-channel quadrature digital outputs. Being TTL compatible, th.

AEDR-8400 Datasheet (349.92 KB)

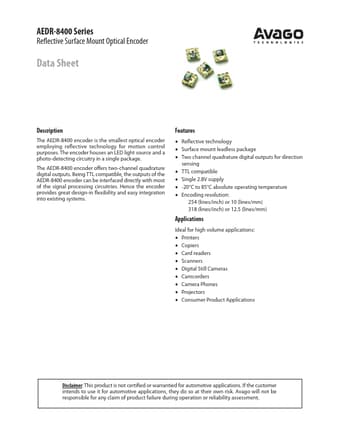

Preview of AEDR-8400 PDF

Datasheet Details

Part number:

AEDR-8400

Manufacturer:

AVAGO TECHNOLOGIES

File Size:

349.92 KB

Description:

Reflective surface mount optical encoder.
