AEDR-8300 Description

Agilent AEDR-8300 Series Encoders Reflective Surface Mount Optical Encoder Data Sheet .
The AEDR-8300 series is the smallest optical encoder employing reflective technology for motion control purposes.

AEDR-8300 Features

* Reflective technology
* Surface mount small outline leadless package

AEDR-8300 Applications

* The AEDR-8300 series provides motion sensing at a competitive cost, making it ideal for high volume applications. Its small size and surface mount package make it ideal for printers, copiers, card readers and many consumer products, particularly where space and weigh are design constraint.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AEDR-8300, AEDR-8300_Hewlett. Please refer to the document for exact specifications by model.

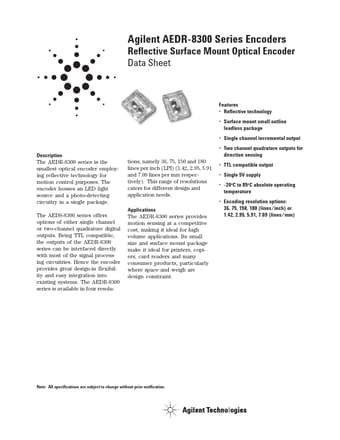

datasheet Preview Page 2 datasheet Preview Page 3
