AEDR-8712

3-Channel High Resolution Reflective Incremental Encoder

AEDR-8712 Features

* World's smallest 3-channel reflective technology encoder

* Digital Output option

* 3 channels TTL compatible; 2 channel quadrature (AB) digital outputs for direction sensing and a third channel, Index digital output. Built-in interpolator for 4×, 8×, and 16× interpolation.

* Su

AEDR-8712 General Description

The Broadcom® AEDR-871x encoder is the smallest 3-channel optical encoder with digital outputs that employs Reflective Technology for motion control. The encoder is designed to operate over the

*40°C to 85°C temperature range and so is suitable for both commercial and industrial applications.

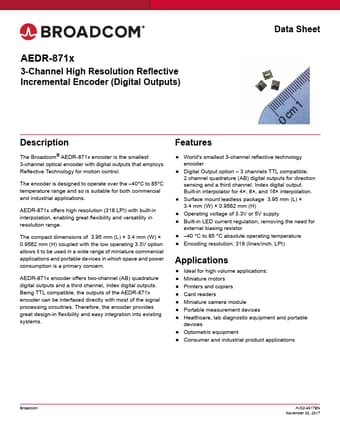

AEDR-8712 Datasheet (1.00 MB)

Preview of AEDR-8712 PDF

Datasheet Details

Part number:

AEDR-8712

Manufacturer:

Broadcom

File Size:

1.00 MB

Description:

3-channel high resolution reflective incremental encoder.
