AED17Q50

DC-DC / Intermediate Bus Converter

AED17Q50 Features

* High efficiency (96% Typical)

* Industry standard package 16th Brick 0.90” x 1.30"

* High capacitive load limit on start-up

* Output Enable Pin

* Undervoltage lockout

* Over Temperature Protection

* Meets Basic Insulation

* EU directi

AED17Q50 Datasheet (264.98 KB)

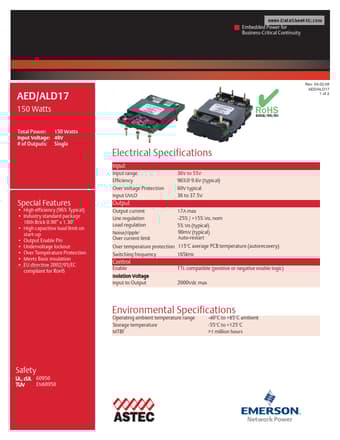

Preview of AED17Q50 PDF

Datasheet Details

Part number:

AED17Q50

Manufacturer:

Emerson

File Size:

264.98 KB

Description:

Dc-dc / intermediate bus converter.
Embedded Power for Business-Critical Continuity AED/ALD17 150 Watts Total Power: 150 Watts Input Voltage: 48V # of Outputs: Single Rev. 04.02.08 AED.
