AEDR-8713 Datasheet 3-Channel High Resolution Reflective Incremental Encoder

Manufacturer: Broadcom

Download the AEDR-8713 datasheet PDF. This datasheet also includes the AEDR-8710 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

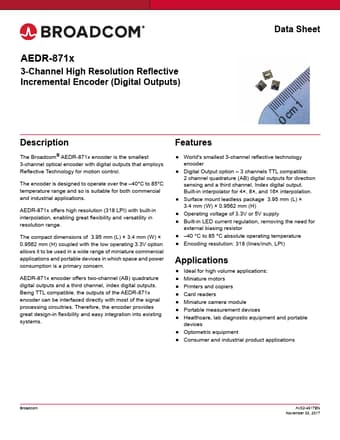

AEDR-8713 3-channel high resolution reflective incremental encoder by Broadcom - Datasheet Preview — Note: The manufacturer provides a single datasheet file (AEDR-8710-Broadcom.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	AEDR-8713
Manufacturer	Broadcom
File Size	1.00 MB
Description	3-Channel High Resolution Reflective Incremental Encoder
Datasheet	AEDR-8713 Datasheet

General Description

The Broadcom® AEDR-871x encoder is the smallest 3-channel optical encoder with digital outputs that employs Reflective Technology for motion control.

The encoder is designed to operate over the –40°C to 85°C temperature range and so is suitable for both commercial and industrial applications.

AEDR-871x offers high resolution (318 LPI) with built-in interpolation, enabling great flexibility and versatility in resolution range.

Overview

AEDR-871x 3-Channel High Resolution Reflective Incremental Encoder (Digital Outputs) Data.

Key Features

World's smallest 3-channel reflective technology encoder.
Digital Output option.
3 channels TTL compatible; 2 channel quadrature (AB) digital outputs for direction sensing and a third channel, Index digital output. Built-in interpolator for 4×, 8×, and 16× interpolation.
Surface mount leadless package 3.95 mm (L) × 3.4 mm (W) × 0.9562 mm (H).
Operating voltage of 3.3V or 5V supply.
Built-in LED current regulation, removing the need for external biasing resisto.
