AMMP-6130 Datasheet - AVAGO TECHNOLOGIES

30 GHz Power Amplifier with Frequency Multiplier

AMMP-6130 Features

* 5x5 mm Surface Mount Package Integrated DC Block and Choke 50 Ω Input and Output Match Single Positive Supply Pin No Negative Gate Bias Specifications (Vd=4.5V, Idd=200mA) Frequency Range 15GHz in, 3

AMMP-6130 General Description

Avago Technologies AMMP-6130 is a high gain, narrowband doubler and output power amplifier designed for DBS applications and other commercial communication systems. The MMIC takes an input 15 GHz signal and passes it through a harmonic frequency multiplier (x2) and then three stages of power amplifi.

AMMP-6130 Datasheet (220.41 KB)

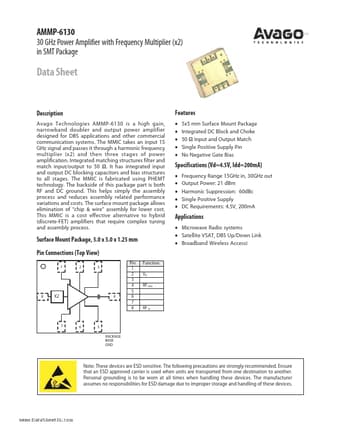

AMMP-6130 Datasheet Preview — Preview of AMMP-6130 PDF

Datasheet Details

Part number:

AMMP-6130

Manufacturer:

AVAGO TECHNOLOGIES

File Size:

220.41 KB

Description:

30 ghz power amplifier with frequency multiplier.
