AMMP-6120 - 8-24 GHz x2 Frequency Multiplier

AMMP-6120 Description

AMMP-6120 8-24 GHz x2 Frequency Multiplier Data Sheet .
Avago Technologies’ AMMP-6120 is an easy-to-use integrated frequency multiplier (x2) in a surface mount package designed for commercial communication.

AMMP-6120 Features

* 5x5mm Surface Mount Package
* Frequency Range : 8-24 GHz output (Useable to 26 GHz)
* Broad input power range: -11 to +5 dBm
* Output Power : +16 to +18 dBm
* Harmonic Suppression : 20 dBc (Fundamental)

AMMP-6120 Applications

* Microwave Radio systems
* Satellite VSAT and DBS systems
* 802.16 & 802.20 WiMax BWA systems
* WLL and MMDS loops Functional Block Diagram Vd Vg 12 3 RF IN 8 4 RF OUT 765 NC NC NC RoHS-Exemption Please refer to hazardous substances table on page 7. RFin 8 X2 765 top view

📥 Download Datasheet

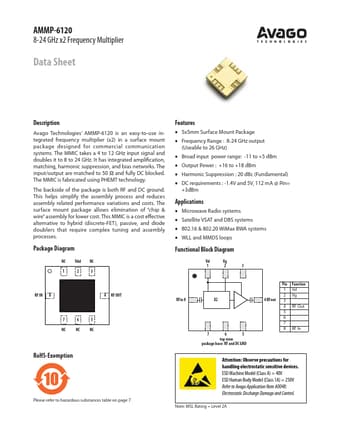

Preview of AMMP-6120 PDF
