AMMP-6125 - 10-24 GHz x2 Frequency Multiplier

AMMP-6125 Description

AMMP-6125 10-24 GHz x2 Frequency Multiplier Data Sheet .
The AMMP-6125 is an easy-to-use surface mounted packaged integrated frequency multiplier (x2) that operates from 10 to 24 GHz output frequency.

AMMP-6125 Features

*  5 x 5 mm surface mount package
*  Wide frequency operation: 10-24 GHz (Output)
*  50  Input and Output Match
*  40° C to +85° C operation
*  Output Power of +21.5 dBm Typical

AMMP-6125 Applications

*  Microwave Radio Systems
*  VSAT
*  Satellite Up/Down Link
*  Test Equipment Package Diagram 123 8 GND 4 RoHS-Exemption Please refer to hazardous substances table on page 8. 765 TOP VIEW Attention: Observe Precautions for handling electrostatic sensitive devices. ESD Machine Mode

📥 Download Datasheet

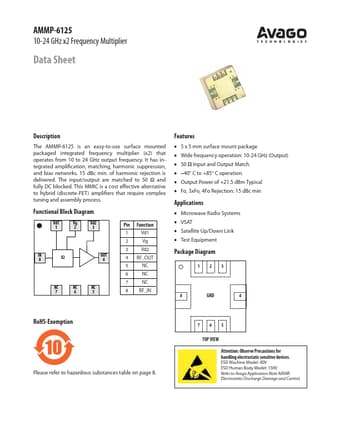

Preview of AMMP-6125 PDF
