AMMP-6333

Amplifier

AMMP-6333 Features

* a temperature compensated RF power detection circuit that enables power detection sensitivity of 0.3 V/W at 25GHz. It is fabricated using Avago Technologies unique 0.25μm E-mode PHEMT technology which eliminates the need for negative gate biasing voltage. Features

* Frequency range: 18 to

AMMP-6333 General Description

The AMMP-6333 is a broadband 0.2 W driver amplifier designed for use in transmitters operating in various frequency bands from 18 GHz to 33 GHz. This small, easy to use device provides over 23 dBm of output power (P-1dB) and more than 20 dB of gain at 25 GHz. It was optimized for linear operation wi.

AMMP-6333 Datasheet (284.80 KB)

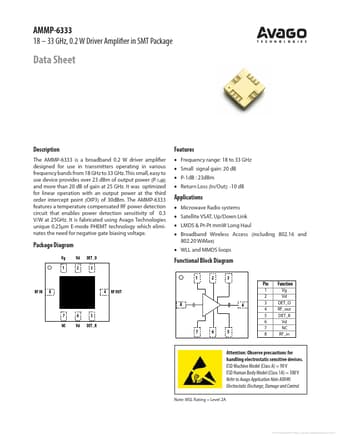

Preview of AMMP-6333 PDF

Datasheet Details

Part number:

AMMP-6333

Manufacturer:

AVAGO

File Size:

284.80 KB

Description:

Amplifier.
