ASMT-CW00, 0.4mm Low Profile Right Angle Surface Mount ChipLED

ASMT-CW00 InGaN White, 0.4mm Low Profile Right Angle Surface Mount ChipLED Data Sheet .
The ASMT-CW00 of white color chip-type LEDs is designed with the smallest footprint to achieve high density of components on board.

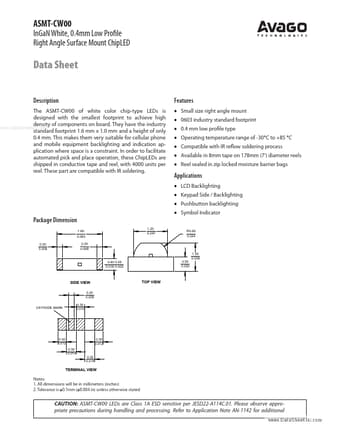

datasheet Preview Page 1 from Datasheet4u.com

ASMT-CW00_AVAGOTECHNOLOGIES.pdf

ASMT-CW00 Datasheet Preview — Preview of ASMT-CW00 PDF

Datasheet Details

Part number:

ASMT-CW00

Manufacturer:

AVAGO TECHNOLOGIES

File Size:

392.80 KB

Description:

0.4mm Low Profile Right Angle Surface Mount ChipLED

Features

* Small size right angle mount
* 0603 industry standard footprint
* 0.4 mm low profile type
* Operating temperature range of -30°C to +85 °C
* Compatible with IR reflow soldering process
* Available in 8mm tape on 178mm (7’) diameter reels

Applications

* LCD Backlighting
* Keypad Side / Backlighting
* Pushbutton backlighting
* Symbol Indicator Package Dimension 1.60 0.063 0.20 0.008 0.20 0.008 1.00 0.039 1.20 0.047 R0.60 0.024 0.40`0.05 0.016`0.002 0.50 0.020 SIDE VIEW 0.20 0.009 CATHODE MARK 0.30 0.012
