ACPL-227

DC Input Multi-Channel Half-Pitch Phototransistor Optocoupler

ACPL-227 Features

* x Current transfer ratio (CTR: 50% (min) at IF = 5mA,VCE = 5V) x High input-output isolation voltage (VISO = 3,000VRMS) x Non-saturated Response time (tr: 2μs (typ) at VCC = 10V, IC = 2mA, RL= 100:) x SO package x CMR 10kV/μs (typical) x Safety and regulatory approvals - cUL - IEC/EN/DIN EN 60747-5-

ACPL-227 General Description

The ACPL-227 is a DC-input dual channel half-pitch phototransistor optocoupler which contains two light emitting diodes optically coupled to two separate phototransistors. It is packaged in an 8-pin SO package. Likewise, the ACPL-247 is a DC-input quad channel halfpitch phototransistor optocoupler w.

ACPL-227 Datasheet (124.26 KB)

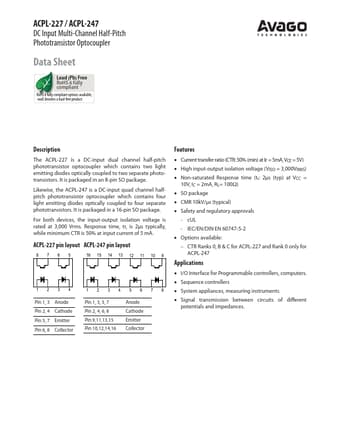

Preview of ACPL-227 PDF

Datasheet Details

Part number:

ACPL-227

Manufacturer:

AVAGO

File Size:

124.26 KB

Description:

Dc input multi-channel half-pitch phototransistor optocoupler.
ACPL-227 / ACPL-247 DC Input Multi-Channel Half-Pitch Phototransistor Optocoupler Data Sheet Lead (Pb) Free RoHS 6 fully compliant RoHS 6 fully compli.
