ACPL-244 Datasheet, Optocoupler, Broadcom

ACPL-244 Features

  • Optocoupler
  • Current transfer ratio (CTR: 20% (min) at IF = ±1 mA, VCE = 5V)
  • High input-output isolation voltage (VISO = 3750 VRMS)
  • Non-saturated response time (tr: 2 μ

PDF File Details

Part number:

ACPL-244

Manufacturer:

Broadcom

File Size:

820.23kb

Download:

📄 Datasheet

Description:

Multi-channel half-pitch phototransistor optocoupler. The ACPL-224 is an AC-input dual-channel, half-pitch phototransistor optocoupler each of which contains two light-emitting diodes con

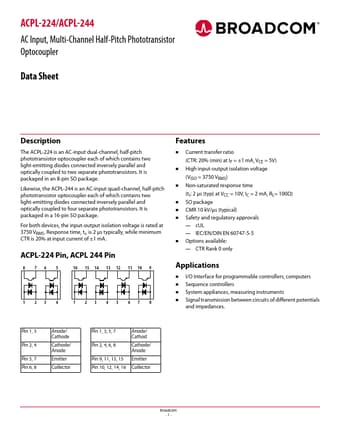

Datasheet Preview: ACPL-244 📥 Download PDF (820.23kb)
Page 2 of ACPL-244 Page 3 of ACPL-244

ACPL-244 Application

  • Applications
  • I/O Interface for programmable controllers, computers
  • Sequence controllers
  • System appliances, measuring i
