ACPL-224 - Multi-Channel Half-Pitch Phototransistor Optocoupler

Broadcom

📥 Download Datasheet

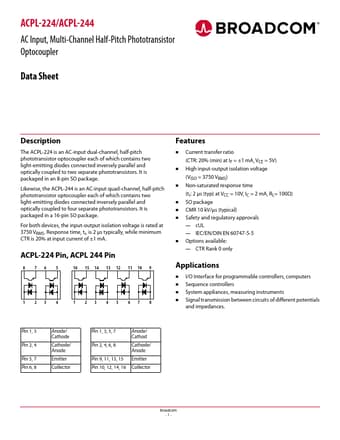

ACPL-224 Datasheet Preview — Preview of ACPL-224 PDF

Datasheet Details

Part number: ACPL-224
Manufacturer: Broadcom
File Size: 820.23 KB
Datasheet: ACPL-224-Broadcom.pdf
Description: Multi-Channel Half-Pitch Phototransistor Optocoupler

ACPL-224 Product details

Description

The ACPL-224 is an AC-input dual-channel, half-pitch phototransistor optocoupler each of which contains two light-emitting diodes connected inversely parallel and optically coupled to two separate phototransistors..

Features

Current transfer ratio (CTR: 20% (min) at IF = ±1 mA, VCE = 5V).
High input-output isolation voltage (VISO = 3750 VRMS).
Non-saturated response time (tr: 2 μs (typ) at VCC = 10V, IC = 2 mA, RL= 100Ω).
SO package.
CMR 10 kV/μs (typical).
Safety and regulatory approvals.
cUL.
IEC/EN/DIN EN 60747-5-5.
Options available:.
CTR Rank 0 only.
