ACPL-268KL

Logic Gate Optocouplers

ACPL-268KL Features

* Low power consumption

* 3.3V supply voltages

ACPL-268KL General Description

These units are single and dual channel, hermetically sealed optocouplers. The products are capable of operation and storage over the full military temperature range and can be purchased as either standard commercial product or with full MIL-PRF-38534 Class Level H or K testing or from DLA Drawing .

ACPL-268KL Datasheet (148.04 KB)

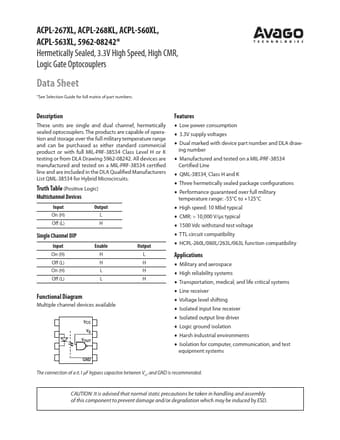

Preview of ACPL-268KL PDF

Datasheet Details

Part number:

ACPL-268KL

Manufacturer:

AVAGO

File Size:

148.04 KB

Description:

Logic gate optocouplers.
ACPL-267XL, ACPL-268KL, ACPL-560XL, ACPL-563XL, 5962-08242
* Hermetically Sealed, 3.3V High Speed, High CMR, Logic Gate Optocouplers Data Sheet
