ACPL-C87B, Precision Optically Isolated Voltage Sensor

ACPL-C87B, ACPL-C87A, ACPL-C870 Precision Optically Isolated Voltage Sensor Data Sheet Lead (Pb) Free RoHS 6 fully compliant RoHS 6 fully compliant op.
The ACPL-C87B/C87A/C870 voltage sensors are optical isolation amplifiers designed specifically for voltage sensing.

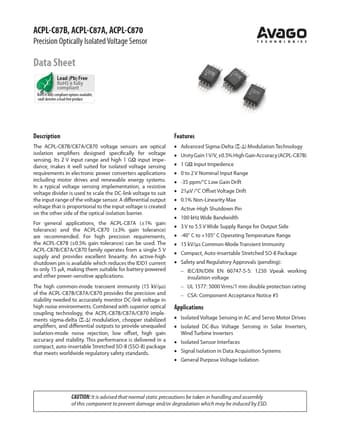

datasheet Preview Page 1 from Datasheet4u.com

ACPL-C87B-AVAGO.pdf

ACPL-C87B Datasheet Preview — Preview of ACPL-C87B PDF

Datasheet Details

Part number:

ACPL-C87B

Manufacturer:

AVAGO

File Size:

127.40 KB

Description:

Precision Optically Isolated Voltage Sensor

Features

*  Advanced Sigma-Delta (-) Modulation Technology
*  Unity Gain 1V/V, ±0.5% High Gain Accuracy (ACPL-C87B)
*  1 G Input Impedence
*  0 to 2 V Nominal Input Range
*  -35 ppm/°C Low Gain Drift
*  21V /°C Offset Voltage Drift
*  0.1% Non-Linearity Max
*  Active-High

Applications

* including motor drives and renewable energy systems. In a typical voltage sensing implementation, a resistive voltage divider is used to scale the DC-link voltage to suit the input range of the voltage sensor. A differential output voltage that is proportional to the input voltage is created on the
