ACPL-C87H Precision Optically Isolated Voltage Sensor

The ACPL-C87H voltage sensors are optical isolation amplifiers designed specifically for voltage sensing. Its 2 V input range and high 1 G input impedance, makes it well suited for isolated voltage sensing requirements in electronic power converters applications including motor drives and renewable.

ACPL-C87H Features

*  Advanced Sigma-Delta (-) Modulation Technology

*  Unity Gain 1 V/V, ±3% High Gain Accuracy

*  1 G Input Impedence

*  0 to 2 V Nominal Input Range

*  -35 ppm/°C Low Gain Drift

*  21V /°C Offset Voltage Drift

*  0.1% Non-Linearity Max

*  Active-High Shutdown Pin

ACPL-C87H Datasheet (116.37 KB)

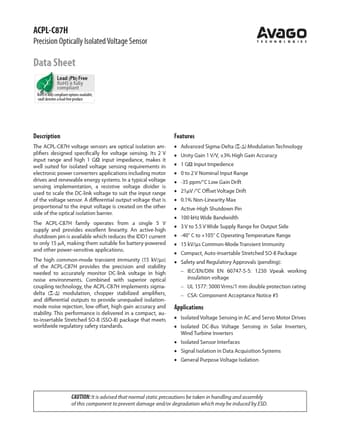

ACPL-C87H Datasheet Preview — Preview of ACPL-C87H PDF
