HDSP-2534 - Smart Alphanumeric Display

HDSP-2534 Description

HDSP-253x Series Eight Character 5 mm Smart Alphanumeric Display Data Sheet .
The HDSP-253x is ideal for applications where displaying eight or more characters of dot matrix information in an aesthetically pleasing manner is req.

HDSP-2534 Features

* are accessed through a bidirec­tional eight-bit data bus. Features
* XY stackable
* 128 character ASCII decoder
* Programmable functions
* 16 user definable characters
* Multi-level dimming and blanking
* TTL compatible CMOS IC
* Wave s

HDSP-2534 Applications

* where displaying eight or more characters of dot matrix information in an aesthetically pleasing manner is required. These devices are eight-digit, 5 x 7 dot matrix, alpha­nu­meric displays. The 5.0 mm (0.2 inch) high characters are pack­aged in a 0.300 inch (7.62 mm) 30 pin DIP. The on-board CMOS I

📥 Download Datasheet

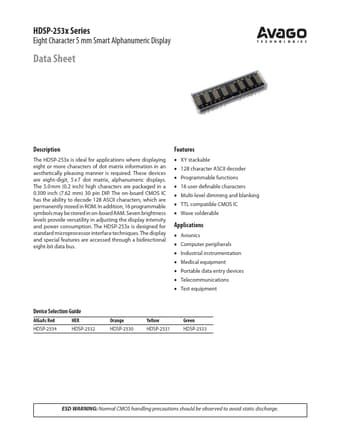

Preview of HDSP-2534 PDF
