AV3168

(AV3168 / AV3169) Video Encoder

AV3168 Features

* Fully CCIR 624 performance compliance NTSC and PAL (B,D,G,H,I,M and N) video encoder

* Composite, S-video, Component Y/Cb/Cr (Sony, Matsushita, and SMPTE) or RGB output.

* Triple 10-bit digital to analog converter.

* Accepts 27 Mhz multiplexed 8-bit digital video in

AV3168 General Description

The AV3168 is a mixed signal CMOS monolithic device. It comprise with a PAL and NTSC Video Encoder, Color Space Converter and Clock Generator, The Clock Generator outputs a video, an audio and a programmable general purpose clock. This IC implemented Macrovision Anti-tapping 7.01, intended for DVD a.

AV3168 Datasheet (169.69 KB)

Rating: 1 ★ (5 votes)

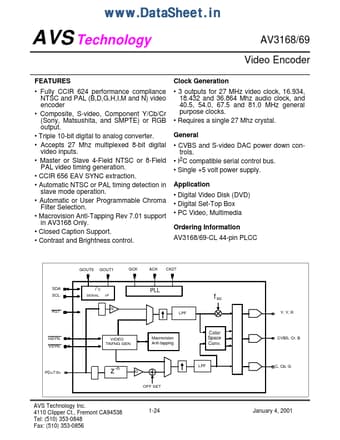

AV3168 Datasheet Preview — Preview of AV3168 PDF

Datasheet Details

Part number:

AV3168

Manufacturer:

AVS

File Size:

169.69 KB

Description:

(av3168 / av3169) video encoder.
