Step-Up/Down Inverting Switching Regulators

AV34063 Features

* Operation from 3.0 to 40V input Low standby current Current limiting Output switch current of 1.5A Output voltage adjustable Frequency of operation from 100Hz to 100KHz Precision 2% reference SOP-8 BLOCK DIAGRAM Drive Collector 8 S Q Q2 Q1 100 IPK CT 1 Switch Collector www.DataSheet.net/ IPK Sen

AV34063 General Description

The AV34063 is a monolithic control circuit containing the primary functions required for DC-to-DC converters. This device consists of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit,driver and high current output switc.

AV34063 Datasheet (319.68 KB)

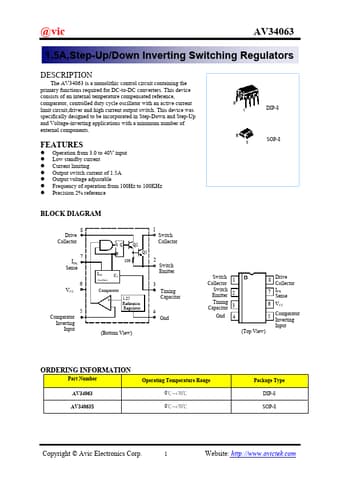

AV34063 Datasheet Preview — Preview of AV34063 PDF

Datasheet Details

Part number:

AV34063

Manufacturer:

Avic Technology

File Size:

319.68 KB

Description:

Step-up/down inverting switching regulators.
