(AV3842B / AV3843B) LINEAR INTEGRATED CIRCUIT

AV3842B Features

* Trimmed Oscillator for Precise Frequency Control

* Oscillator Frequency Guaranteed at 250kHz

* Current Mode Operation to 500kHz

* Automatic Feed Forward Compensation

* Latching PWM for Cycle-By-Cycle Current Limiting

* Internally Trimmed Reference with Undervoltage Lockout

* H

AV3842B General Description

The @vic AV3842B/3843B are specifically designed for Off-Line and dc-to-dc converter applications offering the designer a cost-effective solution with minimal external components. The AV3842B has UVLO thresholds 16V (on) and 10V(off), ideally suited for off-line converters. The AV3843B is tailored f.

AV3842B Datasheet (428.62 KB)

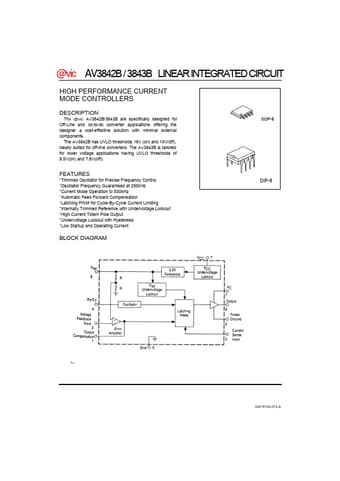

AV3842B Datasheet Preview — Preview of AV3842B PDF

Datasheet Details

Part number:

AV3842B

Manufacturer:

Avic Technology

File Size:

428.62 KB

Description:

(av3842b / av3843b) linear integrated circuit.
