AV3842A - (AV3842A / AV3843A) LINEAR INTEGRATED CIRCUIT

AV3842A Description

@vic AV3842A / 3843A LINEAR INTEGRATED CIRCUIT CURRENT MODE PWM CONTROL CIRCUITS .
The @vic AV3842A/3843A provide the necessary functions to implement off-line or DC to DC fixed frequency current mode , controlled switching circuits.

AV3842A Features

* Low external part count.
* Low start up current ( Typical 0.12mA )
* Automatic feed forward compensation
* Pulse-by-Pulse current limiting
* Under-voltage lockout with hysteresis
* Double pulse Suppression
* High current totem pole output to drive MOSFET directly
* Internal

📥 Download Datasheet

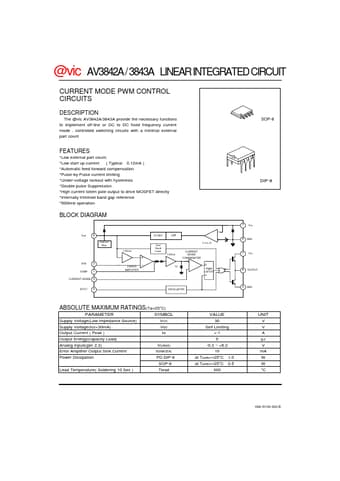

Preview of AV3842A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AV3842A
Manufacturer
Avic Technology
File Size
118.84 KB
Datasheet
AV3842A_AvicTechnology.pdf
Description
(AV3842A / AV3843A) LINEAR INTEGRATED CIRCUIT
