AX5502 Datasheet, Converter, AXElite

AX5502 Features

  • Converter Very Low Supply Current Regulated Output Voltage Wide range of output voltage is available form 2.2V to 5.0V by 0.1V steps Output Voltage Accuracy ±5% Output Current up to 100mA Low rip

PDF File Details

Part number:

AX5502

Manufacturer:

AXElite

File Size:

1.17MB

Download:

📄 Datasheet

Description:

Micropower vfm step-up dc/dc converter. The AX5502 is a high efficiency VFM Step-up DC/DC converter for small, low input voltage or battery powered systems with ultra-low qu

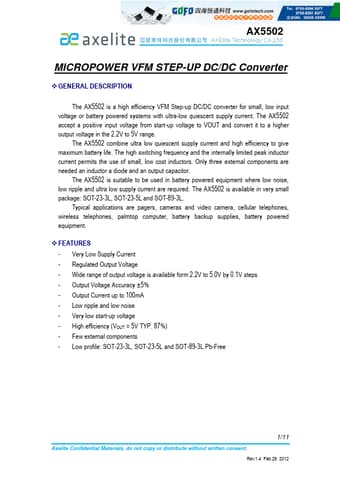

Datasheet Preview: AX5502 📥 Download PDF (1.17MB)
Page 2 of AX5502 Page 3 of AX5502

AX5502 Application

  • Applications are pagers, cameras and video camera, cellular telephones, wireless telephones, palmtop computer, battery backup supplies, battery powe
