AX5510 Boost Converter

AX5510 Description

AX5510 680K/1.2MHz, High Voltage, Boost Converter  GENERAL .
The AX5510 is a high performance, high efficiency step up DC-DC Converter with integrated 3A.

AX5510 Features

* 2.6V to 5.5V operating input voltage range Adjustable output voltage range up to 27V Up to 3A output switch current 680K/1.2MHz Selectable Switching Frequency Programmable soft-start function External Compensation Network Current limit and Thermal shutdown protection Under voltage Lockout ≤ 1µA Shut

AX5510 Applications

* R8 is a suggested a value by 10~30KΩ. Place the resistor-divider as close to the IC as possible to reduce the noise sensitivity. Soft Start Capacitor The soft-start function begins from SS pin Voltage=0V to VCC with a 7uA (typ. ) constant current charging to the soft-start capacitor, so the capacito

📥 Download Datasheet

Preview of AX5510 PDF

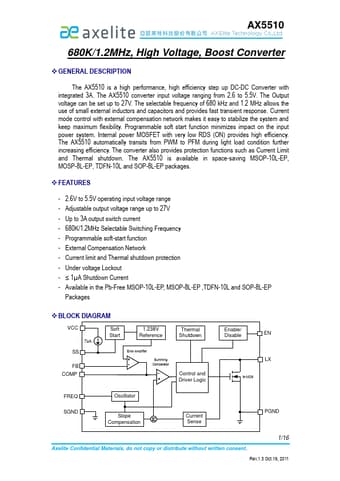

datasheet Preview Page 2 datasheet Preview Page 3
