AX5503 Datasheet - AXElite

MICROPOWER VFM STEP-UP DC/DC Converter

AX5503 Features

* Very Low Supply Current is 22uA (typ.) Maximum shutdown current

AX5503 General Description

The AX5503 is a high efficiency VFM Step-up DC/DC converter for small, low input voltage or battery powered systems with ultra low quiescent supply current. The AX5503 accept a positive input voltage from start-up voltage to VOUT and convert it to a higher output voltage in the 2.2V to 5V range. The.

AX5503 Datasheet (380.26 KB)

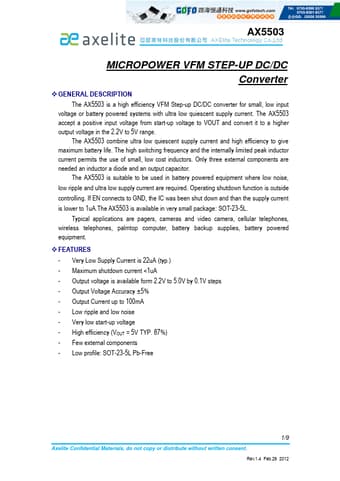

Preview of AX5503 PDF

Datasheet Details

Part number:

AX5503

Manufacturer:

AXElite

File Size:

380.26 KB

Description:

Micropower vfm step-up dc/dc converter.
