AX5510A

Boost Converter

AX5510A Features

* 2.6V to 5.5V operating input voltage range Adjustable output voltage range up to 27V Up to 2A output switch current 680K/1.2MHz Selectable Switching Frequency Programmable soft-start function External Compensation Network Current limit and Thermal shutdown protection Under voltage Lockout ≤ 1µA Shut

AX5510A General Description

The AX5510A is a high performance, high efficiency step up DC-DC Converter with integrated 2A. The AX5510A converter input voltage ranging from 2.6 to 5.5V. The Output voltage can be set up to 27V. The selectable frequency of 680 kHz and 1.2 MHz allows the use of small external inductors and capacit.

AX5510A Datasheet (863.19 KB)

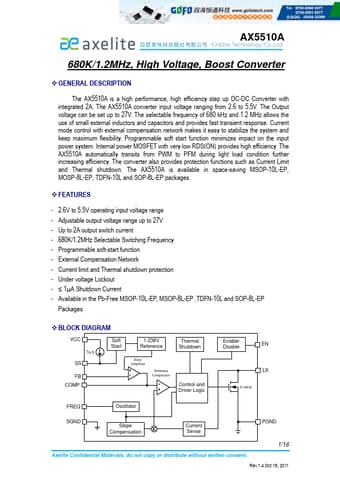

Preview of AX5510A PDF

Datasheet Details

Part number:

AX5510A

Manufacturer:

AXElite

File Size:

863.19 KB

Description:

Boost converter.
