AX6224 Datasheet - AXElite

Current Mode PWM Power Switch

AX6224 Features

* - Power on Soft Start Reducing MOSFET V DS Stress - Frequency Shuffling for EMI - Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power Design Audio Noise Free Operation Fixed 50KHZ Switching Frequency Internal Synchronized Slope Compensation Low VDD Startup Current and Low O

AX6224 General Description

AX6224 combines a dedicated current mode PWM controller with a high voltage power MOSFET. It is optimized for high performance, low standby power, and cost effective off-line flyback converter applications in under 8W range. AX6224 offers complete protection coverage with automatic self-recovery fea.

AX6224 Datasheet (363.38 KB)

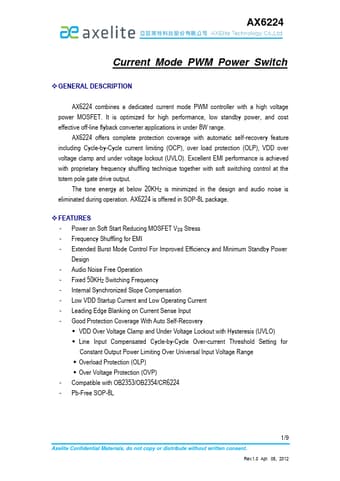

Preview of AX6224 PDF

Datasheet Details

Part number:

AX6224

Manufacturer:

AXElite

File Size:

363.38 KB

Description:

Current mode pwm power switch.
