AX6228

Current Mode PWM Power Switch

AX6228 Features

* - Power on Soft Start Reducing MOSFET V DS Stress - Frequency Shuffling for EMI - Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power Design Audio Noise Free Operation Fixed 50KHZ Switching Frequency Internal Synchronized Slope Compensation Low VDD Startup Current and Low O

AX6228 General Description

AX6228 combines a dedicated current mode PWM controller with a high voltage power MOSFET. It is optimized for high performance, low standby power, and cost effective off-line flyback converter applications in under 16W range. AX6228 offers complete protection coverage with automatic self-recovery fe.

AX6228 Datasheet (1.10 MB)

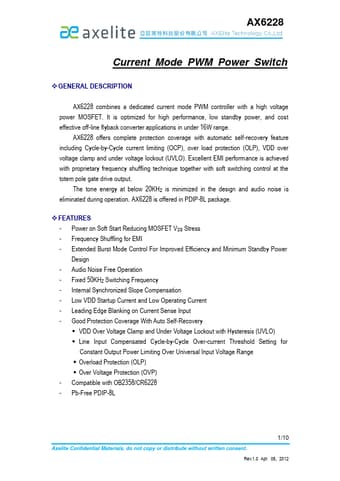

Preview of AX6228 PDF

Datasheet Details

Part number:

AX6228

Manufacturer:

AXElite

File Size:

1.10 MB

Description:

Current mode pwm power switch.
