ACM1602K Datasheet - AZ Displays

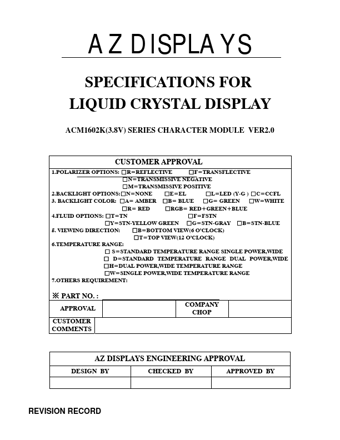

ACM1602K - SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY

Executing time fosc=250khz 1.64ms 1.64ms Clear Display Cursor at Home 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 x Clears Display & Returns to Address 0. Returns Cursor to Address 0. Also returns the display being shifted to the original position. DDRAM contents remain unchanged. I/D: Set Curs.
AZ DISPLAYS, INC. COMPLETE LCD SOLUTIONS SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY PART NUMBER: DATE: ACM 1602K SERIES August 9, 1999 ACM1602K SERIES LCD MODULE 1.0 MECHANICAL SPECS 1. Overall Module Size 80.0mm(W) x 36.0mm(H) x max 13.5mm(D) for LED backlight version 80.0mm(W) x 36.0mm(H) x max 9.5mm(D) for reflective version 2. Dot Size 3. Dot Pitch 4. Duty 5. Controller IC 6. LC Fluid Options 7. Polarizer Options 8. Backlight Options 9. Temperature Range Options 0.56mm(W) x 0.61mm(H) 0.61.

ACM1602K_AZDisplays.pdf

Preview of ACM1602K PDF
ACM1602K Datasheet Preview Page 2 ACM1602K Datasheet Preview Page 3

Datasheet Details

Part number:

ACM1602K

Manufacturer:

AZ Displays

File Size:

283.65 KB

Description:

Specifications for liquid crystal display.
