ACT6700

MobileLDO High Performance Low Dropout Regulators

ACT6700 Features

* 110mV Typical Dropout with 150mA Load

* Very Low 23µA Supply Current

* 1.5% Voltage Accuracy

* 450mA Typical Current Limit

* Thermal Shutdown Protection

* Fold-back Current Limit Protection

* 1.5V to 5V Fixed Output Voltages

* Power-G

ACT6700 General Description

The ACT670_ MobileLDOTM series products are high performance low dropout voltage regulators designed for portable applications with very low quiescent current (23µA) and dropout voltage (110mV at 150mA). The ACT670_ LDOs have typical current limit of 450mA and are available in high accuracy (1.5%) o.

ACT6700 Datasheet (273.71 KB)

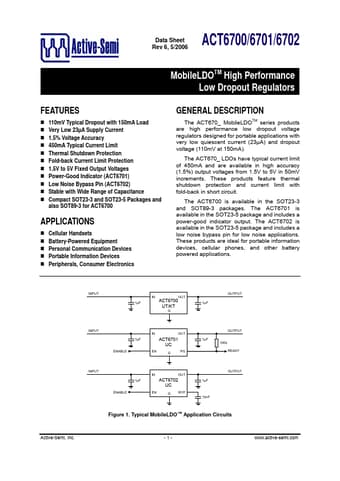

Preview of ACT6700 PDF

Datasheet Details

Part number:

ACT6700

Manufacturer:

Active-Semi

File Size:

273.71 KB

Description:

Mobileldo high performance low dropout regulators.
