ACT6711, ACT6710-Active Datasheet - Active-Semi

ACT6711 MobileLDO HIGH PERFORMANCE LOW DROPOUT REGULATORS

The ACT670_ and ACT671_ MobileLDOTM series products are high performance low dropout voltage regulators designed for portable applications with very low quiescent current (23uA) and dropout voltage (110mV at 150mA). The ACT6710/6711/6712 LDOs have typical current limit of 700mA. The ACT6700/6701/670.

ACT6711 Features

* 110mV typical dropout with 150mA Load Very Low 23µA Supply Current 1.5% Voltage Accuracy 450mA (ACT670_) or 700mA (ACT671_) Typical Current Limit Thermal Shutdown Protection Fold-back Current Limit Protection 1.8V to 3.3V Fixed Output Voltage Power-Good Indicator Low Noise Bypass Pin Stability with

ACT6710-Active-Semi.pdf

This datasheet PDF includes multiple part numbers: ACT6711, ACT6710-Active. Please refer to the document for exact specifications by model.

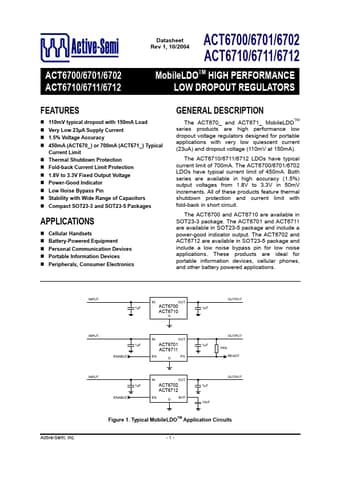

ACT6711 Datasheet Preview Page 2 ACT6711 Datasheet Preview Page 3

Datasheet Details

Part number:

ACT6711, ACT6710-Active

Manufacturer:

Active-Semi

File Size:

292.82 KB

Description:

Mobileldo high performance low dropout regulators.

Note:

This datasheet PDF includes multiple part numbers: ACT6711, ACT6710-Active.
Please refer to the document for exact specifications by model.
