ACT6701 MobileLDO High Performance Low Dropout Regulators

The ACT670_ MobileLDOTM series products are high performance low dropout voltage regulators designed for portable applications with very low quiescent current (23µA) and dropout voltage (110mV at 150mA). The ACT670_ LDOs have typical current limit of 450mA and are available in high accuracy (1.5%) o.

ACT6701 Features

* 110mV Typical Dropout with 150mA Load

* Very Low 23µA Supply Current

* 1.5% Voltage Accuracy

* 450mA Typical Current Limit

* Thermal Shutdown Protection

* Fold-back Current Limit Protection

* 1.5V to 5V Fixed Output Voltages

* Power-G

ACT6700-Active-Semi.pdf

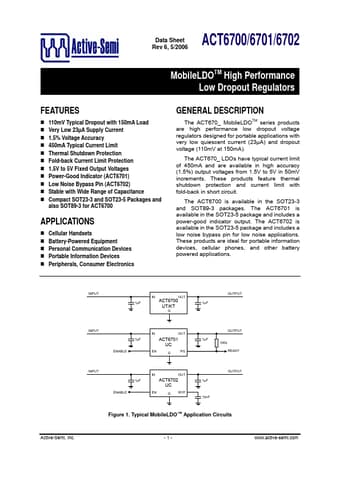

ACT6701 Datasheet Preview — This datasheet PDF includes multiple part numbers: ACT6701, ACT6700-Active. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ACT6701, ACT6700-Active

Manufacturer:

Active-Semi

File Size:

273.71 KB

Description:

Mobileldo high performance low dropout regulators.

Note:

This datasheet PDF includes multiple part numbers: ACT6701, ACT6700-Active.
Please refer to the document for exact specifications by model.
