PDB-C109 Datasheet - Advanced Photonix

PDB-C109 Blue Enhanced Photoconductive Silicon Photodiode

The PDB-C109 is a blue enhanced PIN silicon photodiode in a photoconductive mode, packaged in a TO-8 package. APPLICATIONS * Instrumentation * Industrial * Medical ABSOLUTE MAXIMUM RATING (TA)= 23°C UNLESS OTHERWISE NOTED VBR TSTG TO TS Reverse Voltage Storage Temperature O.
Blue Enhanced Photoconductive Silicon Photodiode www.DataSheet4U.com PDB-C109 PACKAGE DIMENSIONS INCH [mm] PACKAGE DIMENSIONS INCH [mm] Ø.555 [14.10] Ø.545 [13.84] Ø.490 [12.45] Ø.480 [12.19] .215 [5.46] .065 [1.65] ANODE 2X Ø.018 [0.46] 79° VIEWING Ø.449 [11.40] ANGLE Ø.444 [11.28] .295 [7.49] CATHODE .016 [0.41] MAX GLASS ABOVE CAP TOP EDGE 2X 1.50 [38.1] CHIP DIMENSIONS INCH [mm] CHIP DIMENSIONS INCH [mm] .341 [8.66] .231 [5.87] .209 [5.31] ACTIVE AREA TO-8 PACKAGE TO-8 PACKAGE .3.

PDB-C109_AdvancedPhotonix.pdf

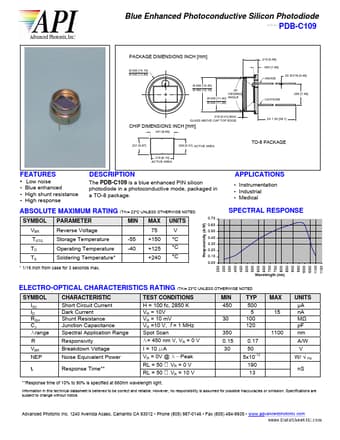

Preview of PDB-C109 PDF

Datasheet Details

Part number:

PDB-C109

Manufacturer:

Advanced Photonix

File Size:

117.84 KB

Description:

Blue enhanced photoconductive silicon photodiode.
