AP20G45EH - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet

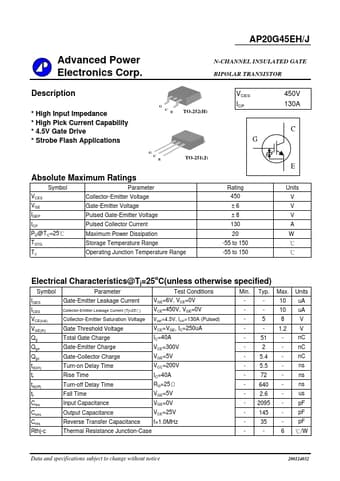

Preview of AP20G45EH PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number AP20G45EH
Manufacturer Advanced Power Electronics
File Size 69.78 KB
Description N-CHANNEL ENHANCEMENT MODE POWER MOSFET
Datasheet download datasheet AP20G45EH-AdvancedPowerElectronics.pdf

AP20G45EH Product details

Description

High Input Impedance High Pick Current Capability 4.5V Gate Drive Strobe Flash Applications G C E TO-252(H) G C E TO-251(J) VCES ICP G Absolute Maximum Ratings Symbol Parameter VCES Collector-Emitter Voltage VGE Gate-Emitter Voltage IGEP Pulsed Gate-Emitter Voltage ICP PD@TC=25℃ Pulsed Collector Current Maximum Power Dissipation TSTG Storage Temperature Range TJ Operating Junction Temperature Range Rating 450 ±6 ±8 130 20 -55 to 150 -55 to 150 450V 130A
