AP40P03GJ-HF, AP40P03GH-HF, P-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP40P03GH/J-HF Halogen-Free Product Advanced Power Electronics Corp.▼ Lower On-resistance ▼ Simple Drive Requirement ▼ Fast Switching Characteristic.
The TO-252 package is widely preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC.

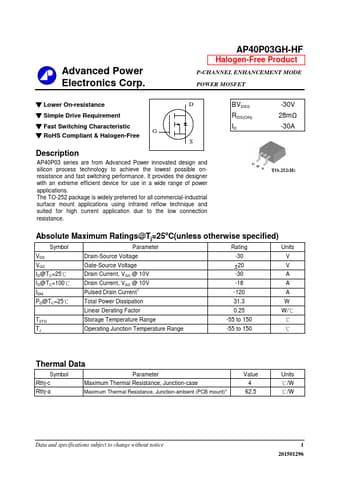

datasheet Preview Page 1 from Datasheet4u.com

AP40P03GH-HF-AdvancedPowerElectronics.pdf

AP40P03GJ-HF Datasheet Preview — This datasheet PDF includes multiple part numbers: AP40P03GJ-HF, AP40P03GH-HF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AP40P03GJ-HF, AP40P03GH-HF

Manufacturer:

Advanced Power Electronics

File Size:

51.93 KB

Description:

P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Note:

This datasheet PDF includes multiple part numbers: AP40P03GJ-HF, AP40P03GH-HF.
Please refer to the document for exact specifications by model.

Applications

* and suited for low voltage applications such as DC/DC converters. The through-hole version (AP40P03GJ) is available for low-profile applications. G D S G D S TO-252(H) TO-251(J) Absolute Maximum Ratings Symbol VDS VGS ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃ TSTG TJ Parameter Drain-Source Voltage Gate-
