AP4405GM - P-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP4405GM Description

AP4405GM RoHS-compliat Product Advanced Power Electronics Corp.▼ Simple Drive Requirement ▼ Lower On-resistance ▼ Fast Switching Characteristic SO-8.
Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cos.

AP4405GM Applications

* and suited for low voltage applications such as DC/DC converters. D G S Absolute Maximum Ratings Symbol VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Continuous Drain Current Pulsed Drain Current 1 3 3 Rating -30 +20

📥 Download Datasheet

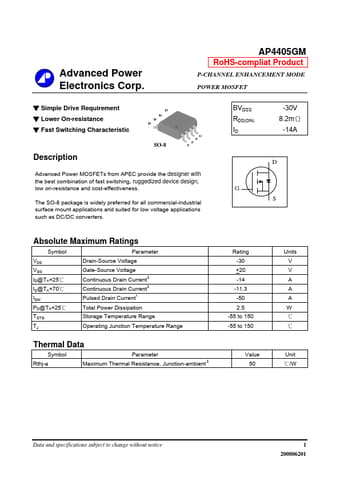

Preview of AP4405GM PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP4405GM
Manufacturer
Advanced Power Electronics
File Size
212.15 KB
Datasheet
AP4405GM-AdvancedPowerElectronics.pdf
Description
P-CHANNEL ENHANCEMENT MODE POWER MOSFET
