AP4455GYT-HF - P-CHANNEL ENHANCEMENT MODE POWER MOSFET

The AP4455GYT-HF by Advanced Power Electronics is a P-CHANNEL ENHANCEMENT MODE POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the AP4455GYT-HF P-CHANNEL ENHANCEMENT MODE POWER MOSFET datasheet (Advanced Power Electronics).

Datasheet Details

Part number AP4455GYT-HF
Manufacturer Advanced Power Electronics
File Size 57.67 KB
Description P-CHANNEL ENHANCEMENT MODE POWER MOSFET
Datasheet download datasheet AP4455GYT-HF-AdvancedPowerElectronics.pdf

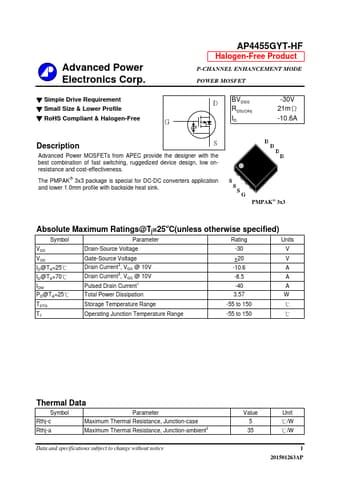

Additional preview pages of the AP4455GYT-HF datasheet.

AP4455GYT-HF Product details

Description

S Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low onresistance and cost-effectiveness.The PMPAK® 3x3 package is special for DC-DC converters application and lower 1.0mm profile with backside heat sink.D D D D S S S G PMPAK® 3x3 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Drain-Source Voltage Gate-Source Vo
