DRF1200, MOSFET Driver Hybrid

DRF1200 ® 15V, 13A, 30MHz MOSFET Driver Hybrid The DRF1200 MOSFET driver hybrid.This hybrid includes a high power gate driver and the power MOSFET..

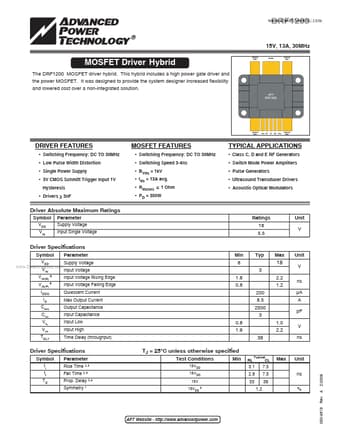

datasheet Preview Page 1 from Datasheet4u.com

DRF1200_AdvancedPowerTechnology.pdf

DRF1200 Datasheet Preview — Preview of DRF1200 PDF

Datasheet Details

Part number:

DRF1200

Manufacturer:

Advanced Power Technology

File Size:

1.47 MB

Description:

MOSFET Driver Hybrid

Features

* Switching Frequency: DC TO 30MHz
* Low Pulse Width Distortion
* Single Power Supply
* 3V CMOS Schmitt Trigger Input 1V Hysteresis
* Drivers > 3nF MOSFET FEATURES
* Switching Frequency: DC TO 30MHz
* Switching Speed 3-4ns
* BVds = 1kV

Applications

* Class C, D and E RF Generators
* Switch Mode Power Ampliﬁers
* Pulse Generators
* Ultrasound Transducer Drivers
* Acoustic Optical Modulators Driver Absolute Maximum Ratings Symbol VDD VIN Parameter Supply Voltage Input Single Voltage Ratings 18 5.5 Unit
