DRF1211, high power gate driver and the power MOSFET

MOSFET Driver Hybrid The DRF1211 hybrid includes a high power gate driver and the power MOSFET.It was designed to provide the system designer increas.

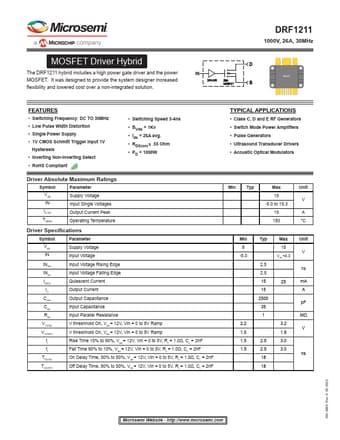

datasheet Preview Page 1 from Datasheet4u.com

DRF1211-Microsemi.pdf

DRF1211 Datasheet Preview — Preview of DRF1211 PDF

Datasheet Details

Part number:

DRF1211

Manufacturer:

Microsemi ↗

File Size:

1.75 MB

Description:

high power gate driver and the power MOSFET

Features

* Switching Frequency: DC TO 30MHz
* Low Pulse Width Distortion
* Single Power Supply
* 1V CMOS Schmitt Trigger Input 1V Hysteresis
* Inverting Non-Inverting Select
* RoHS Compliant
* Switching Speed 3

Applications

* Class C, D and E RF Generators
* Switch Mode Power Amplifiers
* Pulse Generators
* Ultrasound Transducer Drivers
* Acoustic Optical Modulators Min Typ Max Unit 15 V -5.0 to 15.3 15 A 150 °C Min Typ Max Unit 8 15 V -5.0 Vdd +0.3 2.5 ns 2.5
