DRF1202, MOSFET Driver Hybrid

DRF1202 500V, 50A, 30MHz MOSFET Driver Hybrid The DRF1202 hybrid includes a high power gate driver and the power MOSFET.The driver output can be con.

datasheet Preview Page 1 from Datasheet4u.com

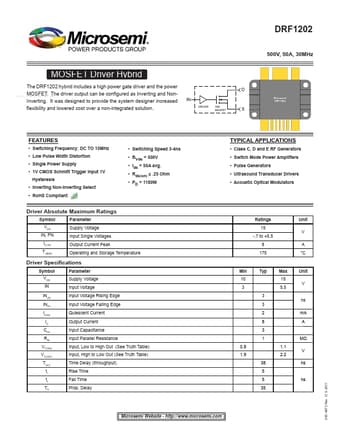

DRF1202_MicrosemiCorporation.pdf

DRF1202 Datasheet Preview — Preview of DRF1202 PDF

Datasheet Details

Part number:

DRF1202

Manufacturer:

Microsemi ↗ Corporation

File Size:

270.20 KB

Description:

MOSFET Driver Hybrid

Features

* Switching Frequency: DC TO 15MHz
* Low Pulse Width Distortion
* Single Power Supply
* 1V CMOS Schmitt Trigger Input 1V Hysteresis
* Inverting Non-Inverting Select
* RoHS Compliant
* Switching Speed 3-4ns
* BVds = 500V
* Ids =

Applications

* Class C, D and E RF Generators
* Switch Mode Power Ampliﬁers
* Pulse Generators
* Ultrasound Transducer Drivers
* Acoustic Optical Modulators Driver Absolute Maximum Ratings Symbol VDD IN, FN IO PK TJMAX Parameter Supply Voltage Input Single Voltages Output
