DRF100

High Speed MOSFET Driver

DRF100 Features

* Switching Frequency: DC TO 30MHz

* Switching Speeds 3-4ns 50Ω Load

* Low Pulse Width Distortion

* Single Power Supply

* 3V CMOS Schmitt Trigger Input 1V Hysteresis

* Output Capable of ≥ 8A RMS

* Power Dissipation Capability >100W TYPICAL APP

DRF100 Datasheet (2.35 MB)

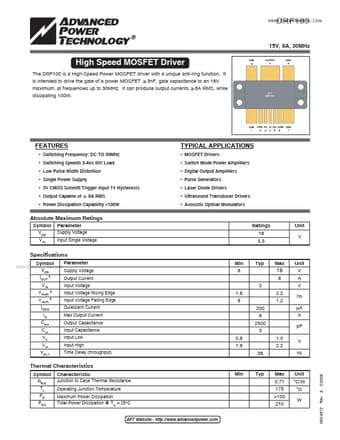

Preview of DRF100 PDF

Datasheet Details

Part number:

DRF100

Manufacturer:

Advanced Power Technology

File Size:

2.35 MB

Description:

High speed mosfet driver.
DRF100 ® 15V, 8A, 30MHz High Speed MOSFET Driver The DRF100 is a High-Speed Power MOSFET driver with a unique anti-ring function. It is intended to d.
