Part number:
VHB40-12F
Manufacturer:
Advanced Semiconductor
File Size:
17.95 KB
Description:
Npn silicon rf power transistor.

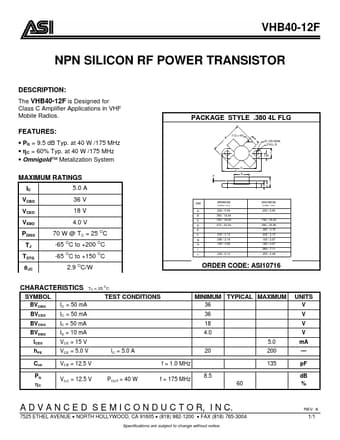

VHB40-12F Datasheet (17.95 KB)
* PG = 9.5 dB Typ. at 40 W /175 MHz
* η C = 60% Typ. at 40 W /175 MHz
* Omnigold™ Metalization System C D MAXIMUM RATINGS IC VCBO VCEO VEBO PDISS TJ TSTG θ JC 5.0 A 36 V 18 V 4.0 V 70 W @ TC = 25 C -65 OC to +200 OC -65 OC to +150 OC 2.9 OC/W O DIM A B C D F E H I G MI
VHB40-12F Datasheet (17.95 KB)
VHB40-12F
Advanced Semiconductor
17.95 KB
Npn silicon rf power transistor.
