ACT4808LD

DUAL TRANSCEIVER

ACT4808LD Features

* ACT4808 Dual Transceiver meets MIL-STD-1553A & B, Macair A3818, A5690, A5232 and A4905 specs

* New Low Power Model

* L Available

* Operates with ±12V to ±15V & +5V Power Supplies

* Voltage source output for higher bus drive power

* Plug-in or Flat Pac

ACT4808LD General Description

The Aeroflex Laboratories transceiver model ACT4808 is a new generation Dual monolithic transceiver which provides full compliance with Macair and MIL-STD-1553 data bus requirements The model ACT4808 performs the front-end analog function of inputting and outputting data through a transformer to a .

ACT4808LD Datasheet (106.11 KB)

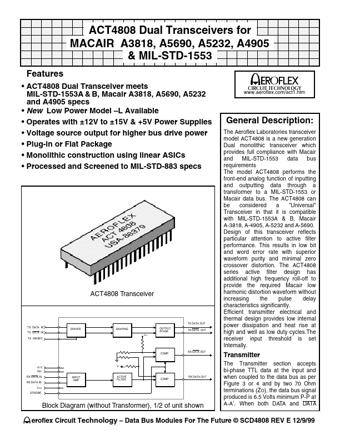

Preview of ACT4808LD PDF

Datasheet Details

Part number:

ACT4808LD

Manufacturer:

Aeroflex Circuit Technology

File Size:

106.11 KB

Description:

Dual transceiver.
