ACTRS128K32 RAD Tolerant ACT-RS128K32 High Speed 4 Megabit SRAM Multichip Module

Aeroflex Circuit Technology

Description

RAD Tolerant ACT *RS128K32 High Speed 4 Megabit SRAM Multichip Module .
The ACT. RS128K32 is a High Speed 4 megabit CMOS SRAM Multichip Module (MCM) designed for full temperature range, military, space, or high reli.

📥 Download Datasheet

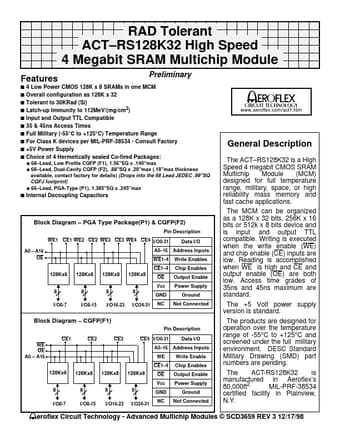

ACTRS128K32 Datasheet Preview — Preview of ACTRS128K32 PDF

Datasheet Specifications

Part number: ACTRS128K32
Manufacturer: Aeroflex Circuit Technology
File Size: 137.60 KB
Datasheet: ACTRS128K32_AeroflexCircuitTechnology.pdf
Description: RAD Tolerant ACT-RS128K32 High Speed 4 Megabit SRAM Multichip Module

Features

* s Overall configuration as 128K x 32 s Tolerant to 30KRad (Si) s Latch-up Immunity to 112MeV/(mg/cm2) s Input and Output TTL Compatible s 35 & 45ns Access Times s Full Military (-55°C to +125°C) Temperature Range s For Class K devices per MIL-PRF-38534 - Consult Factory s +5V Power Supply s Choice o

Applications

* The MCM can be organized as a 128K x 32 bits, 256K x 16 bits or 512k x 8 bits device and is input and output TTL compatible. Writing is executed when the write enable (WE) and chip enable (CE) inputs are low. Reading is accomplished when WE is high and CE and output enable (OE) are both low. Access
