MT3540

1.2MHz Step-Up Converter

MT3540 Features

* Integrated 0.5Ω Power MOSFET

* 40μA Quiescent Current

* 2.5V to 5.5V Input Voltage

* 1.2MHz Fixed Switching Frequency

* Internal 1.5A Switch Current Limit

* Adjustable Output Voltage

* Internal Compensation

* Up to 28V Output Voltage

* Automatic Pulse Frequency

MT3540 General Description

The MT3540 is a constant frequency, 5-pin SOT23 current mode step-up converter intended for small, low power applications. The MT3540 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extend.

MT3540 Datasheet (285.55 KB)

Rating: 1 ★ (3 votes)

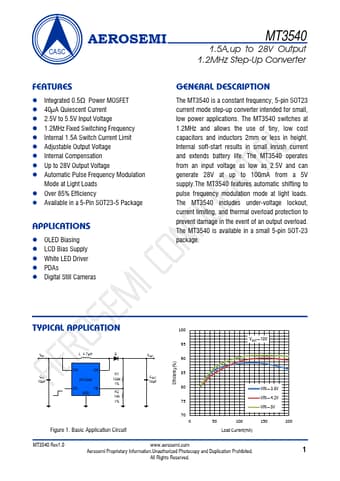

Preview of MT3540 PDF

Datasheet Details

Part number:

MT3540

Manufacturer:

Aerosemi

File Size:

285.55 KB

Description:

1.2mhz step-up converter.
